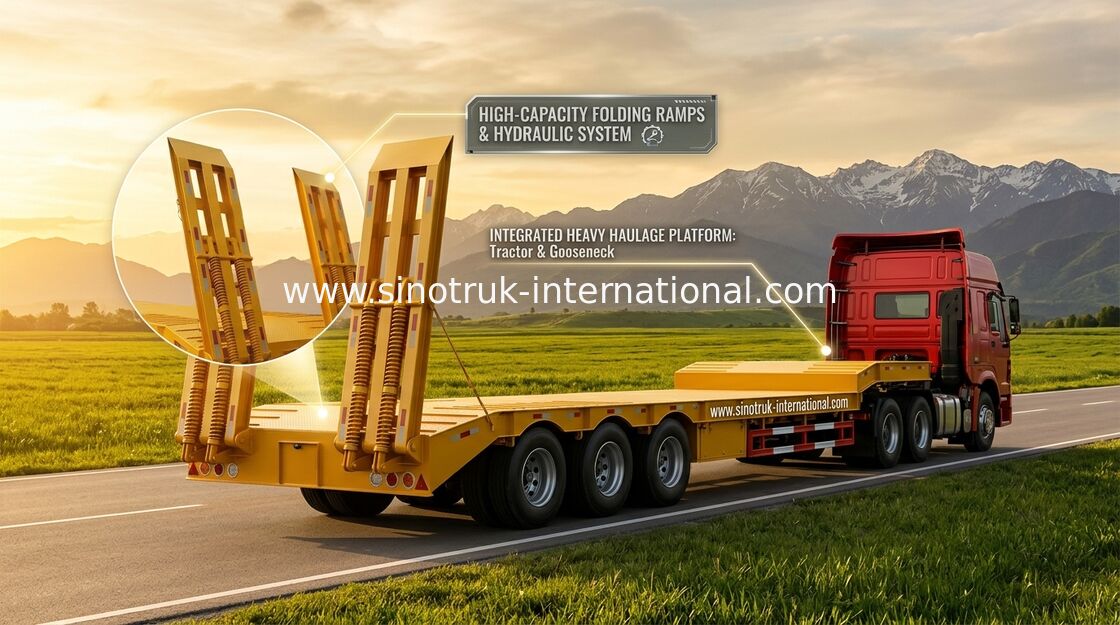

Highway Construction Semi Low Bed Trailer Truck

Highway Construction Semi Low Bed Trailer Truck

  • Highway Construction Semi Low Bed Trailer Truck
  • Highway Construction Semi Low Bed Trailer Truck
  • Highway Construction Semi Low Bed Trailer Truck
  • Highway Construction Semi Low Bed Trailer Truck
Highway Construction Semi Low Bed Trailer Truck
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: SINOTRUK
Orzecznictwo: ISO/3C/BV/IFA/SGS
Model Number: 3 Axles 50-80Tons
Zapłata:
Minimum Order Quantity: 1 Unit
Cena: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Kontakt
Szczegółowy opis produktu
Fifth Wheel: #50, #90 Product Name: Low-bed Semi Trailer Truck
Loading capacity: 50-80tons Dimension of Flat: 13000*3000mm
Axles: 3X16 tons Material: Carbon steel or Mn steel
Model: 3 Axles 50-80Tons Landing gear: 28T JOST
High Light:

Semi Trailer Dump Truck

,

hydraulic flatbed trailer

Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Carrying construction machine



Description:



Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Carrying construction machine

Our company semi trailer truck series,is applied to the transportation of all kinds of

mechanical equipment, big size articles,road construction equipment ,big size tank body

power station equipment and all kinds  of steels .widely using ,high efficiency .whole

vehicle adopts advanced computer aided design for  optimization design ,flexible and

various ,to design carrying flat according to the requirements of  customers.to meet

various of special goods transportation needs.



Specification:



Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Carrying construction machine

Model 3 Axles 60Tons
Axle

FUWA brand, 16ton, 2 Sets

Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Dimension of Flat

13000*3000*6mm

Material

Carbon steel or Mn steel

Gross vehicle weight

75000kgs

King pin

#90

Support leg

JOST Standard 28T

Suspension

Normal suspension

Thickness leaf spring

10/10/10

Tire/Rim

1200R20, 13pcs, 8.5, 12 pcs

Brake Chamber

Standard 6 pcs

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24C lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

Overall dimension

16000×2500×3880(mm)

Color White, red, green, golden and so on.




Applications:



Low bed semi trailer for a variety of mechanical equipment, large objects, highway construction  equipment, large tanks, power station equipment for various steel transportation.



Competitive Advantage:



1) Our company produces low flat semitrailer divided into flat, concave beam and tire exposed structure,  beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is

 I-shaped, has high anti breaking strength and bearing capacity.

2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for  carrying all kinds of engineering machinery, large equipment and steel.

3) Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged

between the front and rear leaf springs.

4) the key parts adopt the world's top technology products

5) based on strong technical support and top level technology make the trucks with high quality and more

reliable

6) competitive price, cost-effective

7) quick and efficient spare parts supply bring you more convenient

8) fast delivery time, we can arrange production according to your needs exactly and Quickly

9) professional import and export dealing procedure, make customs clearance more high efficiency



Highway Construction Semi Low Bed Trailer Truck 0

Highway Construction Semi Low Bed Trailer Truck 1
