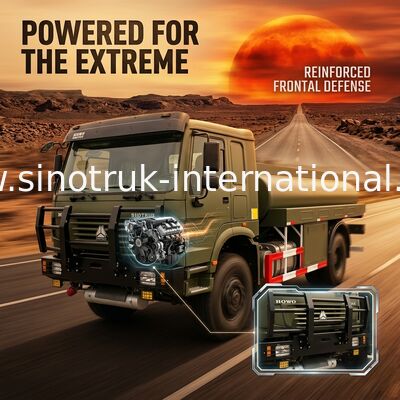

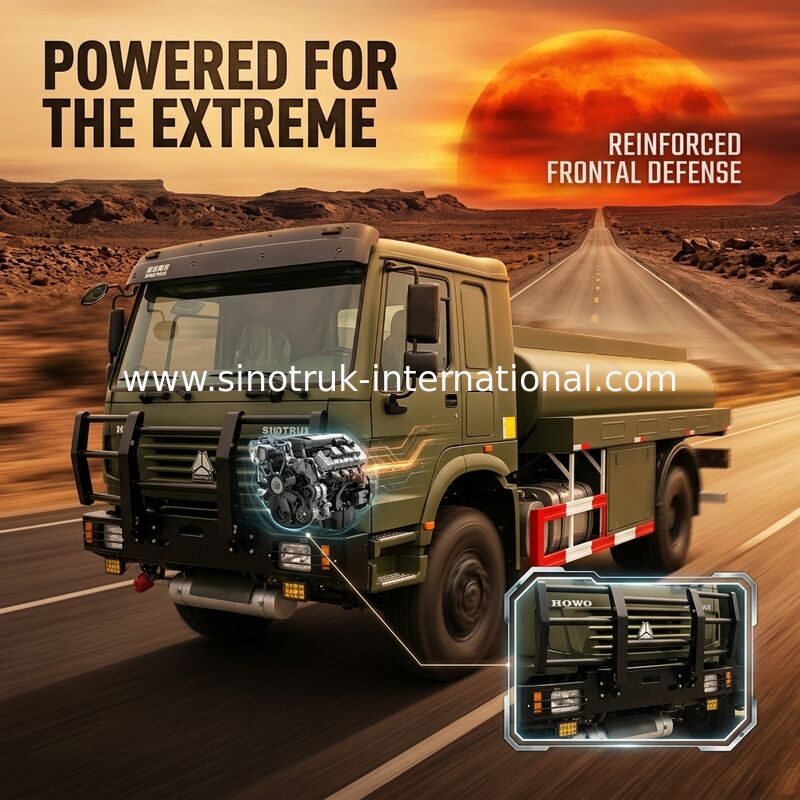

Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin

Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin

  • Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin
  • Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin
  • Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin
  • Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin
Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: SINOTRUK HOWO
Orzecznictwo: ISO/3C/BV/IFA/SGS
Model Number: ZZ2167M5227D1
Zapłata:
Minimum Order Quantity: 1 Unit
Cena: USD22000-USD24500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Kontakt
Szczegółowy opis produktu
Product Name: Oil Tank Truck Model: ZZ2167M5227D1
Drive type: LHD 4X4 Emission Standard: Euro 2
Engine: WD615.87, 290HP Tank body capacity: 8-12CBM
High Light:

fuel oil delivery truck

,

fuel tanker truck

Military SINOTRUK HOWO Oil Tank Truck 8-12CBM for oil transporting 4X4 LHD Euro2



Description:



Oil Tank Truck SINOTRUK 8-12CBM for oil transportation 4X4 LHD Euro3 190HP

Golden Prince Oil Tank Truck, adopts German Man L2000 Cab technology, and HF7 or HF9 front axle, HC16 driving axles. Chassis drive tyep have 4X2, 6X2, 6X4 and 8X4. The engine power from 266HP, to 420HP.



Our company production of the Oil Tank Truck adopts advanced butt welding technology, the

high pressure gas after the forming of the tank test leak detection, the tank has high

strength, stable center of gravity, vehicle safety and stable; tank welding after shot

blasting pretreatment process, rust, paint adopts advanced baking technology, durable and

beautiful appearance. Independent sub warehouse, packing for different oil products,

chemicals, food, as liquid food truck, chemical liquid truck and insulation liquid

transport vehicle, dangerous goods transport vehicles, the asphalt transport vehicle use.



 The Oil tanker is also called mobile fuel trucks, computer refueling vehicle, oil tanker, tanker loading oil,  pulling oil, oil truck, edible oil transport vehicle, mainly for oil derivatives (gasoline, diesel oil, lubricating  oil and coal tar oil) transportation and storage. According to a variety of gas or oil, and the use of  different environment with the oil, pump oil, a variety of oil equipment, put the function. Tanker special  part is composed of a tank, PTO, drive shaft, gear pump, pipeline system components. Pipes system is  composed of an oil pump, three through four ball valve, two-way valve. Filter pipe.







Specification:



Oil Tank Truck SINOTRUK 8-12CBM for oil transportation 4X4 LHD Euro3 190HP

Chassis Model

ZZ2167M5227D1

Drive Type

4×4

Engine

WD615.87, 290HP

Cabin

HW76, with single berh, with A/C

Transmission

HW15710(10 forwards & 2 reverses)

Front Axle

STR

Driving Axle

ST16, 16 Tons

Clutch

hydraulically operating with air assistance

Rim/ Tire

12.00R20

Wheel base

5200(mm)

Capacity of tank body

6-12CBM

Thickness of tank body

3mm,With 2 cabin

Basic setup

Gear oil pump, flow meter, flash hider, fire extinguisher

Overall dimension

8470×2470×3175mm

The curb weight

6340(Kg)

Gross weight

16000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)

transportation and storage.



Competitive Advantage:



1) Our company produces the Oil tank truck with advanced butt welding technology, after the forming

of  the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,

safe  and stable vehicle characteristics;

2) with all kinds of truck model, which can fulfill your requirement
3) the key parts adopt the world's top technology products
4) based on strong technical support and top level technology make the trucks with high quality and

more reliable

5) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking  technology, durable and beautiful appearance. Independent sub positions,

6) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,

 insulation  liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle

7) External sandblasting processing of tank, internal anti-corrosion treatment,        Outside surface adopts advanced polyurethane paint, beautiful appearance

8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

flowers and  plants

9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency



Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin 0Chassis Drive Mobile Oil Tank Truck For Fuel Delivery 266 HP - 420 HP 2 Cabin 1
