| Product Name: | Tipper Dump Truck | Model: | ZZ3257N3847A |
|---|---|---|---|
| Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.47, 371HP | Cargo body: | 5800*2300*1500mm |
| Loading capacity: | 30-40tons | ||
| High Light: | commercial dump truck,sinotruk howo dump truck |
||

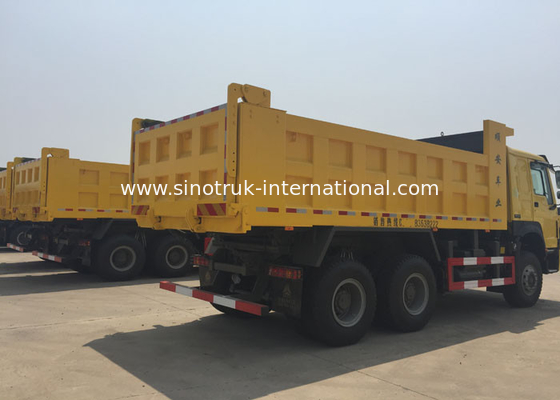

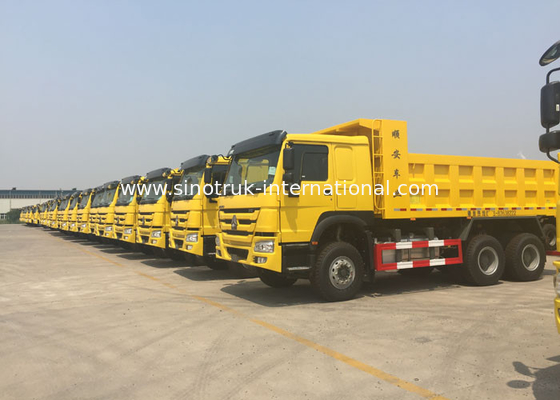

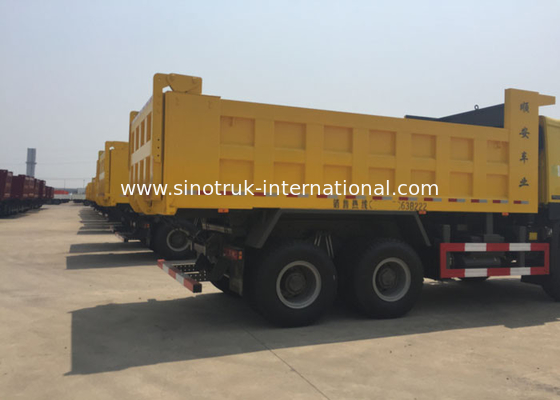

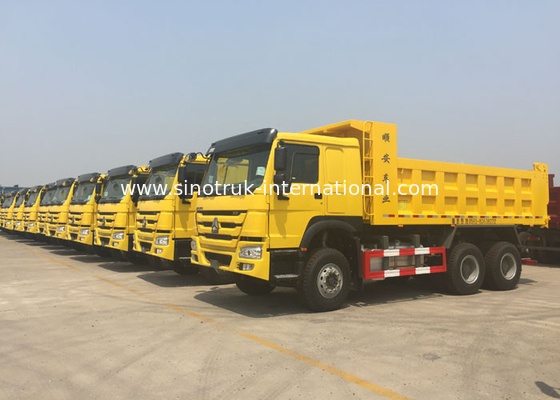

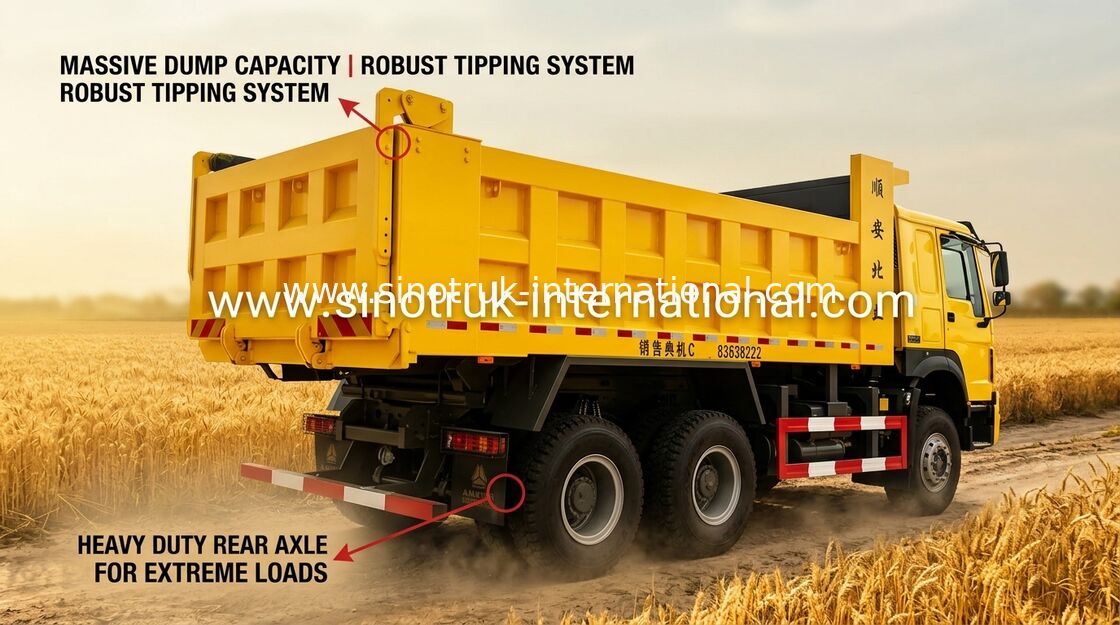

Tipper Dump Truck 6X4 30-40Ton 10-25CBM for Construction material transport
Description:
Tipper Dump Truck 6X4 30-40Ton 10-25CBM for Construction material transport
New HOWO dump truck, High Quality , More Lighter,
SINOTRUK HOWO Dump truck have the most production quantity, and also is the most famouse brand
to abroad market. It adopts famouse brand VOLVO truck technology.
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on. Power range: 266HP - 420HP.
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system
Specification:
| Tipper Dump Truck 6X4 30-40Ton 10-25CBM for Construction material transport | ||||
| Model | ZZ3257N3847A | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8575×2496×3450(mm) | |||
| Cargo body |
5800×2300×1500(mm),Bottom:8mm, Side:6mm |
|||
| The curb weight | 12200(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1) low fuel consumption
2) strong enough engine
3) with all kinds of truck model, which can fulfil your requirements
4) using the high strength steel, make it has a long service life
5) competive price, cost-effective
6) fast delivery time, we can arange production according to your needs exactly and quickly
7) professional import and export dealing precedure, make customs clearance more high efficiency
8) all kinds of cargo body structure can be designed and produced according to your request,
make it have light curb weight , high rigidity , high loading capacity
9) The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
10) excellant apperance of cabin, safety, reliable
11) quick and efficient spare parts supply bring you more convenient
12) you can choose cargo body with Front lifting type or Middle lifting type which you prefered
13) The hydraulic sytem using HYVA brand or Domestic famouse brand
